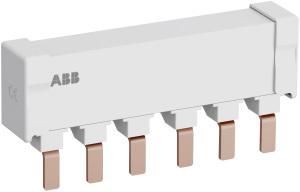

ABB Stotz-Kontakt PS2-2-0-125, 3-phase busbar for 2 MS165, Ie=125A, 1SAM401920R1002

ABB Stotz-Kontakt PS2-2-0-125, 3-phase busbar for 2 MS165, Ie=125A, 1SAM401920R1002

In stock

SKU: 319770

Price on request

€22.46

€0

Into a basketIn the basketGo

Overview

3-phase busbars PS2 are used for parallel feeding of several motor protection switches MS/MO165 with 0, 1 or 2 side attachments of 9 mm width

Property	Value
Number of poles:	6
Number of phases:	3
Length:	115 mm
Cross-section:	25 mm²
Rated continuous current Iu:	125 A
Max. Rated operating voltage Ue:	690 V
Number of pitch units:	6.5714
Insulated:	yes
Suitable for number of devices:	2
Suitable for devices with N conductor:	no
Pitch dimension:	18 mm
Rated short-time withstand current Icw:	100 kA
Suitable for devices with auxiliary switch:	yes
Conditional rated short-circuit current Iq:	100 kA
Design of the electrical connection:	Pin
Rated impulse voltage:	8 kV

Characteristics

Suitable for devices with auxiliary switchYes

Suitable for devices with N conductorNo

Suitable for number of devices2

Pitch dimension18 mm

Rated surge voltage8 kV

HABPS2-2-0-125

Manufacturer

HAN1SAM401920R1002

GTIN4013614502187

Number of phases3

Design of the electrical connectionPen

Conditional rated short-circuit current Iq100kA

Rated continuous current Iu125A

Rated short-time withstand current Icw100kA

IsolatedYes

Length115 mm

Max. rated operating voltage Ue690V

Number of poles6

Cross-section25 mm²
