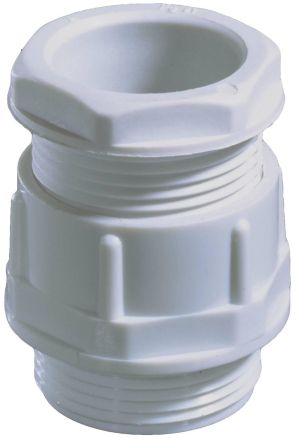

Wiska 10060143 KVG 11 plastic cable gland

In stock

SKU: 634425

Price on request

€0.38

€0

Overview

Cone cable gland with one-piece sealing ring, PG thread Operating temperature: -20°C to 80°C, briefly up to approx. 120°C Color: RAL 7035 Material: Polyamide, glass fiber reinforced

Property	Value
Wrench size:	22 mm
Thread pitch:	1.41 mm
Metric thread size:	11
Suitable for cable diameters:	6 to 9 mm
Hexagon corner dimension:	24 mm
Protection class (IP):	IP54
Operating temperature:	-20 to 80 °C
Halogen-free:	yes
Thread length:	8 mm
Thread type:	PG
Color:	gray
RAL number:	7035
Material:	plastic
Impact resistant:	yes
Material quality:	Polyamide (PA)
Design:	straight
With strain relief:	no
Surface protection:	untreated
Type of seal:	Sealing ring
Bending protection:	no
Glass fibre reinforced:	yes
With Locknut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex-Zone Gas:	without
For Ex-Zone Dust:	without
Snaps into opening:	no
For reinforced Cable:	no
EMC version:	no
Shielded:	no
Pressure equalizing:	no
