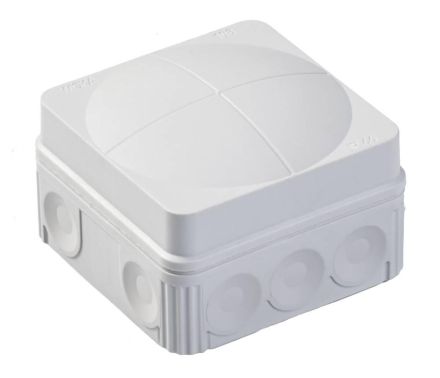

Wiska 10060523 108/5 grey IP66 cable junction box

In stock
SKU: 633760
€4.09
Into a basketIn the basketGo

Overview

Damp-proof cable junction box made of flame-retardant, halogen-free, glass-fiber-reinforced polypropylene, in 2-component plastic technology combined with puncture membranes made of thermoplastic elastomer. The box with a high protection class is weather- and UV-resistant, as well as impact-resistant and shatter-proof. Ideal for extreme use or installation indoors and outdoors. High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis and alcohol. There are permanently elastic, self-sealing puncture membranes on the sides and in the base for tool-free cable entry. The box is attached using a quick-mounting bracket or internal openings outside the sealing area.

Property Value
Width: 76 mm
Length: 76 mm
Depth: 51 mm
Color: gray
Protection class (IP): IP66
Equipment: screw terminal
Mounting type: wall/ceiling mounting
Material: plastic
Cover fastening: snap-on
Can be arranged in series: no
Shape: square
Type of housing feedthrough: sealing membrane
Halogen-free: yes
For Ex-Zone Gas: without
Functional integrity: without
Explosion-tested version: no
Supplied with casting compound: no
Potable: yes
For Ex-Zone Dust: without
Installation under water: no
Transparent cover: no
Installation in the ground: no
Number of entries: 12
Surface protection: untreated
For pipe diameters: other
Max. Conductor cross-section: 2.5 mm²
Sealable: no
With shielding: no
Rated insulation voltage Ui: 400 V
Introduction from the rear: yes
Weatherproof: yes
Cover design: blank cover
Operating temperature: -30 to 100 °C
Version: Connection box

Characteristics

Explosion-tested versionNo
HAB108/5 grey IP66
ManufacturerWiska
HAN10060523
GTIN4007685605236
VersionJunction box
Cover designBlind cover
Rated insulation voltage Ui400V
Width76 mm
Operating temperature-30 to 100 °C
ColorGray
ShapeSquare
Functional preservationWithout
Halogen freeYes
Length76 mm
Mounting typeWall/ceiling mounting
Surface protectionUntreated
IP protection)IP66
Depth51 mm
MaterialPlastic
Wiska 10060523 108/5 grey IP66 cable junction box
Wiska 10060523 108/5 grey IP66 cable junction box
