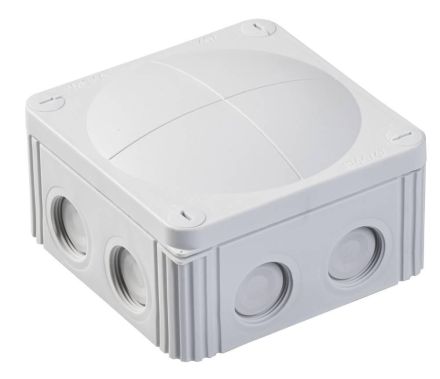

Wiska 10060531 607/empty grey IP66/67 RAL7035 cable junction box

In stock
SKU: 632630
€6.99
Into a basketIn the basketGo

Overview

Damp-proof cable junction box made of flame-retardant, halogen-free, reinforced thermoplastic, in 2-component plastic technology combined with puncture membranes made of thermoplastic elastomer. The box with a high protection class is weather- and UV-resistant, as well as impact-resistant and shatter-proof. Ideal for extreme use or installation indoors and outdoors.High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis and alcohol.Permanently elastic, self-sealing, lateral puncture membranes in a patented combination with an integrated thread make both direct cable installation through the membrane and the use of cable glands without a lock nut possible.Captive quick-release cover screws close the box with just a quarter turn.The box is attached through internal openings outside the sealing area.

Property Value
Width: 110 mm
Length: 110 mm
Depth: 66 mm
Color: gray
Protection class (IP): IP66/IP67
Equipment: without
Mounting type: Wall/ceiling mounting
Material: Plastic
Cover fastening: screwed
Can be arranged in rows: no
Shape: square
Type of housing feedthrough: Thread and sealing membrane
Halogen-free: yes
For Ex-Zone Gas: without
Functional integrity: without
Explosion-tested version: no
Supplied with casting compound: no
Potable: yes
For Ex-Zone Dust: without
Installation under Water: no
Transparent cover: no
Installation in the ground: no
Number of entries: 10
Surface protection: untreated
For pipe diameters: other
Max. Conductor cross-section: 6 mm²
Sealable: yes
With shielding: no
Rated insulation voltage Ui: 690 V
Introduction from the rear: yes
Weatherproof: yes
Cover design: Blank cover
Operating temperature: -30 to 100 °C
Version: Connection box

Characteristics

Explosion-tested versionNo
HAB607/empty grey IP66/67 RAL7035
ManufacturerWiska
HAN10060531
GTIN4007685605311
VersionJunction box
Cover designBlind cover
Rated insulation voltage Ui690V
Width110 mm
Operating temperature-30 to 100 °C
ColorGray
ShapeSquare
Functional preservationWithout
Halogen freeYes
Length110 mm
Mounting typeWall/ceiling mounting
Surface protectionUntreated
IP protection)IP66/IP67
Depth66 mm
MaterialPlastic
