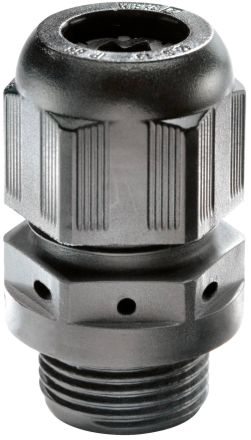

Wiska 10060802 VentGLAND ESVG 20 M20x1,5 RAL9005 cable gland

In stock
SKU: 633579
€12.03
Into a basketIn the basketGo

Overview

A microporous, liquid-tight and breathable ePTFE membrane is integrated into the breathing cable gland. Despite being permeable to water, a membrane is able to exchange air and thus avoid the pressure difference between the inside of the housing and the environment. The cause of condensation is thus eliminated. The patented product is a cable gland and pressure equalization in one. Optimum sealing and strain relief thanks to the special WISKA lamella system with enlarged contact surfaces and a large sealing area. Sealing to the housing with an additional EPDM O-ring. Available in various sizes and materials.

Property Value
Wrench size: 24 mm
Thread pitch: 1.5 mm
Metric thread size: 20
Suitable for cable diameters: 6 to 13 mm
Hexagon corner size: 27 mm
Protection class (IP): IP68
Operating temperature: -40 to 100 °C
Halogen-free: yes
Thread length: 10 mm
Thread type: metric
Color: black
RAL number: 9005
Material: plastic
Impact-resistant: no
Material quality: Polyamide (PA)
Design: straight
With strain relief: yes
Surface protection: other
Type of seal: Sealing ring
Bending protection: yes
Fiberglass reinforced: no
With lock nut: no
Multiple sealing inserts: no
Flat cable gland: no
Dividable gland: yes
Explosion-tested version: no
For Ex zone gas: without
For Ex zone dust: without
Snaps into opening: no
For armored cables: no
EMC version: no
Shielded: no
Pressure equalizing: yes

Characteristics

Impact resistantNo
Explosion-tested versionNo
Fiberglass reinforcedNo
ShieldedNo
Suitable for cable diameter6 to 13 mm
Wrench size24 mm
HABVentGLAND ESVG 20 M20x1,5 RAL9005
ManufacturerWiska
HAN10060802
GTIN4007685608022
VersionStraight
EMC versionNo
Operating temperature-40 to 100 °C
ColorBlack
Thread typeMetric
Thread length10 mm
Thread1.5 mm
Halogen freeYes
With strain reliefYes
Surface protectionOther
RAL number9005
IP protection)IP68
MaterialPlastic
Material qualityPolyamide (PA)
