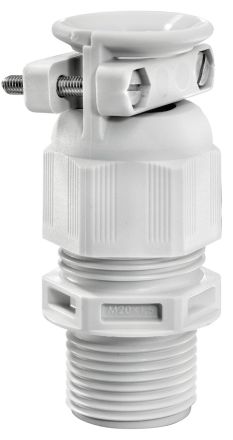

Wiska 10061466 ESKVZ-L 16 M16x1,5 plastic cable gland

In stock
SKU: 633026
€4.06
Into a basketIn the basketGo

Overview

Cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Special cap nut with additional external strain relief through clamping jaws for use on mobile devices. Optimum sealing and strain relief through special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing in sizes M12 to M32 through molded sealing lip, sizes M40 to M63 with connection thread sealing ring. All seals are made of EPDM and are characterized by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimal vibration protection and protection against overtightening of the cap nut. For special applications, an extensive selection of accessories is available within the SPRINT system.

Property Value
Wrench size: 20 mm
Thread pitch: 1.5 mm
Metric thread size: 16
Suitable for cable diameters: 4.5 to 10 mm
Hexagon corner dimension: 22 mm
Protection class (IP): IP68
Operating temperature: -40 to 100 °C
Halogen-free: yes
Thread length: 15 mm
Thread type: metric
Color: gray
RAL number: 7035
Material: plastic
Impact resistant: yes
Material quality: Polyamide (PA)
Design: straight
With strain relief: yes
Surface protection: untreated
Type of seal: Sealing ring
Bending protection: no
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: no
Flat cable screw connection: no
Dividable screw connection: no
Explosion-tested version: no
For Ex-zone gas: without
For Ex-zone dust: without
Snaps into opening: no
For armored cables: no
EMC version: no
Shielded: no
Pressure equalizing: no

Characteristics

Impact resistantYes
Explosion-tested versionNo
Fiberglass reinforcedNo
ShieldedNo
Suitable for cable diameter4.5 to 10mm
Wrench size20 mm
HABESKVZ-L 16 M16x1,5
ManufacturerWiska
HAN10061466
GTIN4007685614665
VersionStraight
EMC versionNo
Operating temperature-40 to 100 °C
ColorGray
Thread typeMetric
Thread length15 mm
Thread1.5 mm
Halogen freeYes
With strain reliefYes
Surface protectionUntreated
RAL number7035
IP protection)IP68
MaterialPlastic
Material qualityPolyamide (PA)
