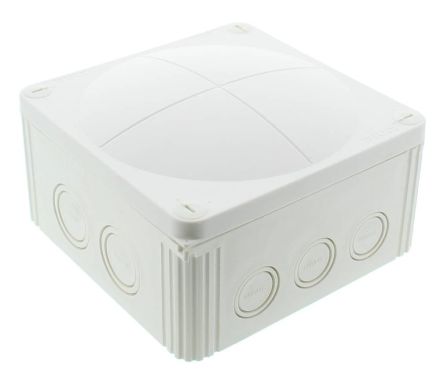

Wiska 10062210 Combi 1010/empty/W white IP66/67 RAL7035 cable junction box

In stock
SKU: 633702
€12.08
Into a basketIn the basketGo

Overview

Damp-proof cable junction box made of flame-retardant, halogen-free, reinforced thermoplastic. The box with a high protection class is weather- and UV-resistant, as well as impact-resistant and shatter-proof. Ideal for extreme use or installation indoors and outdoors.High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis and alcohol.Break-out openings on the side and in the base, in different sizes, enable the use of cable entries with self-sealing puncture membranes or cable glands with lock nuts.Captive quick-release cover screws close the box with just a quarter turn.The box is attached through internal openings outside the sealing area.

Property Value
Width: 140 mm
Length: 140 mm
Depth: 82 mm
Color: white
Protection class (IP): IP66/IP67
Equipment: without
Mounting type: Wall/ceiling mounting
Material: Plastic
Cover fastening: screwed
Can be arranged in series: no
Shape: square
Type of Housing feedthrough: Pre-punched
Halogen-free: yes
For Ex-Zone Gas: without
Functional integrity: without
Explosion-tested version: no
Supplied with casting compound: no
Potable: yes
For Ex-Zone Dust: without
Installation under water: no
Transparent cover: no
Installation in the ground: no
Number of entries: 14
Surface protection: untreated
For pipe diameters: other
Max. Conductor cross-section: 10 mm²
Sealable: yes
With shielding: no
Rated insulation voltage Ui: 690 V
Introduction from the rear: yes
Weatherproof: yes
Cover design: Blank cover
Operating temperature: -30 to 100 °C
Version: Connection box

Characteristics

Explosion-tested versionNo
HABCombi 1010/empty/W white IP66/67 RAL7035
ManufacturerWiska
HAN10062210
GTIN4007685622103
VersionJunction box
Cover designBlind cover
Rated insulation voltage Ui690V
Width140 mm
Operating temperature-30 to 100 °C
ColorWhite
ShapeSquare
Functional preservationWithout
Halogen freeYes
Length140 mm
Mounting typeWall/ceiling mounting
Surface protectionUntreated
IP protection)IP66/IP67
Depth82 mm
MaterialPlastic
Wiska 10062210 Combi 1010/empty/W white IP66/67 RAL7035 cable junction box
Wiska 10062210 Combi 1010/empty/W white IP66/67 RAL7035 cable junction box
