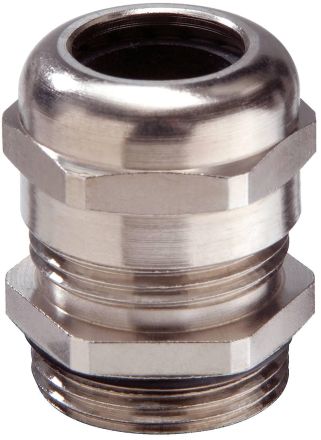

Wiska 10062285 MSKV 16 brass cable gland

In stock
SKU: 634444
€5.99
Into a basketIn the basketGo

Overview

Brass cable gland for indoor and outdoor use. Optimum sealing and strain relief with a large sealing area. Sealing to the housing through a mounted O-ring. All seals are made of EPDM and are characterized by excellent resistance to water, ozone, UV radiation and chemicals.

Property Value
Wrench size: 24 mm
Thread pitch: 1.41 mm
Metric thread size: 16
Suitable for cable diameters: 10 to 14 mm
Hexagon corner size: 27 mm
Protection class (IP): IP68
Operating temperature: -25 to 80 °C
Halogen-free: yes
Thread length: 6.5 mm
Thread type: PG
Color: Silver
Material: Metal
Impact-resistant: yes
Material quality: Brass
Design: straight
With strain relief: yes
Surface protection: nickel-plated
Type of seal: Sealing ring
Bending protection: no
Fiberglass reinforced: no
With lock nut: no
Multiple sealing inserts: no
Flat cable gland: no
Dividable gland: no
Explosion-tested version: no
For Ex zone gas: without
For Ex zone dust: without
Snaps into opening: no
For armored cables: no
EMC version: no
Shielded: no
Pressure equalizing: no

Characteristics

Impact resistantYes
Explosion-tested versionNo
Fiberglass reinforcedNo
ShieldedNo
Suitable for cable diameter10 to 14 mm
Wrench size24 mm
HABMSKV16
ManufacturerWiska
HAN10062285
GTIN4007685622851
VersionStraight
EMC versionNo
Operating temperature-25 to 80 °C
ColorSilver
Thread typePG
Thread length6.5 mm
Thread1.41 mm
Halogen freeYes
With strain reliefYes
Surface protectionNickel-plated
IP protection)IP68
MaterialMetal
Material qualityBrass
