Wiska 10065394 ESSKE4 40 LT M40x1,5 IP68 stainless steel 1.4 ATEX cable gland

In stock

SKU: 633520

Price on request

€209.55

€0

Overview

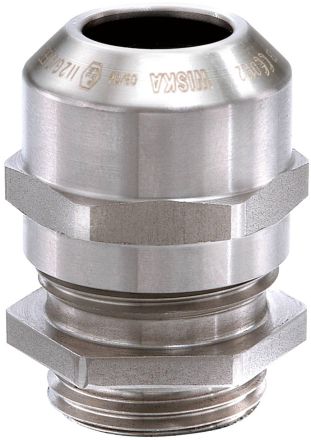

Stainless steel cable gland for indoor and outdoor use. Optimum sealing and strain relief thanks to the special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing using a mounted O-ring. All seals are made of EPDM and are characterized by excellent resistance to water, ozone, UV radiation and chemicals. Approved according to ATEX.

Property	Value
Wrench size:	46 mm
Thread pitch:	1.5 mm
Metric thread size:	40
Suitable for cable diameters:	16 to 28 mm
Hexagon corner dimension:	51 mm
Protection class (IP):	IP68
Operating temperature:	-60 to 75 °C
Halogen-free:	yes
Thread length:	8 mm
Thread type:	metric
Color:	silver
Material:	metal
Impact-resistant:	yes
Material quality:	stainless steel 316 (V4A)
Design:	straight
With strain relief:	yes
Surface protection:	untreated
Type of seal:	Sealing ring
Bending protection:	no
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	yes
For Ex-zone gas:	1, 2
For Ex-zone dust:	21, 22
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
Pressure equalizing:	no
