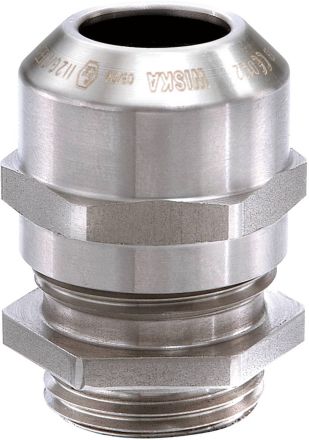

Wiska 10065989 ESSKE 25 LT M25x1,5 stainless steel 1.4305 ATEX cable gland

In stock

SKU: 633502

Price on request

€60.33

€0

Overview

Stainless steel cable gland for indoor and outdoor use. Optimum sealing and strain relief thanks to the special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing thanks to the mounted O-ring. All seals are made of EPDM and are characterized by excellent resistance to water, ozone, UV radiation and chemicals. Approved according to ATEX.

Property	Value
Width across flats:	29 mm
Thread pitch:	1.5 mm
Metric thread size:	25
Suitable for cable diameters:	10 to 17 mm
Hexagon corner size:	32 mm
Protection class (IP):	IP68
Operating temperature:	-60 to 75 °C
Halogen-free:	yes
Thread length:	7 mm
Thread type:	metric
Color:	silver
Material:	metal
Impact-resistant:	yes
Material quality:	stainless steel 304 (V2A)
Design:	straight
With strain relief:	yes
Surface protection:	untreated
Type of seal:	Sealing ring
Bending protection:	no
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	yes
For Ex-zone gas:	1, 2
For Ex-zone dust:	21, 22
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
Pressure equalizing:	no
