Wiska 10069122 ESSKV4-EMV-Z 50 M50x1,5 IP68 stainless steel 1 EMC cable gland

In stock
SKU: 633321
€248.57
Into a basketIn the basketGo

Overview

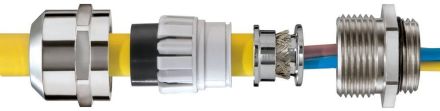

Stainless steel cable gland for indoor and outdoor use. Optimum sealing and strain relief thanks to the special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing thanks to the mounted O-ring. All seals are made of EPDM and are characterized by excellent resistance to water, ozone, UV radiation and chemicals. For special applications, an extensive selection of accessories is available within the SPRINT system. For EMC-compliant installation, the cable gland has been supplemented with an EMC insert.

Property Value
Wrench size: 55 mm
Thread pitch: 1.5 mm
Metric thread size: 50
Suitable for cable diameters: 21 to 35 mm
Hexagon Corner dimensions: 61 mm
Protection class (IP): IP68
Operating temperature: -40 to 100 °C
Halogen-free: yes
Thread length: 9 mm
Thread type: metric
Color: silver
Material: metal
Impact resistant: yes
Material quality: Stainless steel 316 (V4A)
Design: straight
With strain relief: yes
Surface protection: untreated
Type of seal: Sealing ring
Bending protection: no
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: no
Flat cable screw connection: no
Dividable screw connection: no
Explosion-tested version: no
For Ex-zone gas: without
For Ex-zone dust: without
Snaps into opening: no
For armored cables: no
EMC version: yes
Shielded: yes
Pressure equalizing: no

Characteristics

Impact resistantYes
Explosion-tested versionNo
Fiberglass reinforcedNo
ShieldedYes
Suitable for cable diameter21 to 35mm
Wrench size55 mm
HABESSKV4-EMV-Z 50 M50x1,5 IP68 stainless steel 1
ManufacturerWiska
HAN10069122
GTIN4007685691222
VersionStraight
EMC versionYes
Operating temperature-40 to 100 °C
ColorSilver
Thread typeMetric
Thread length9 mm
Thread1.5 mm
Halogen freeYes
With strain reliefYes
Surface protectionUntreated
IP protection)IP68
MaterialMetal
Material qualityStainless steel 316 (V4A)
