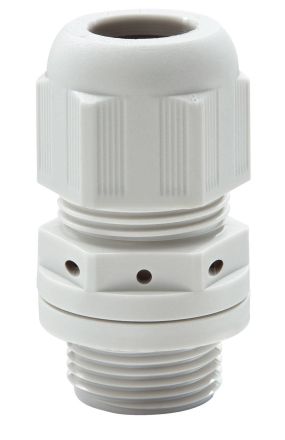

Wiska 10100666 ESVG 25 M25 plastic cable gland

In stock
SKU: 633905
€13.74
Into a basketIn the basketGo

Overview

VentGLAND screw connection: polyamide, seal: EPDM membrane: ePTFE, protection class according to EN60529 IP68 (0.2 bar 30 min) /IP69 Features: Condensation minimization through microporous, liquid-tight and breathable ePTFE membrane as an integrated element of the cable gland, optimal sealing and strain relief through patented WISKA lamella system, sealing on the housing through additional connection thread sealing ring.

Property Value
Suitable for cable diameters: 9 to 17 mm
Protection class (IP): IP68
Operating temperature: -20 to 100 °C
Halogen-free: yes
Color: gray
RAL number: 7035
Material: Plastic
Impact-resistant: yes
Material quality: Polyamide (PA)
Design: straight
With strain relief: yes
Surface protection: untreated
Type of seal: Sealing ring
Bending protection: no
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: no
Flat cable screw connection: no
Dividable screw connection: no
Explosion-tested Version: no
For Ex-Zone Gas: without
For Ex-Zone Dust: without
Snaps into opening: no
For armored cables: no
EMC version: no
Shielded: no
Pressure equalizing: no

Characteristics

Impact resistantYes
Explosion-tested versionNo
Fiberglass reinforcedNo
ShieldedNo
Suitable for cable diameter9 to 17mm
HABESVG 25 M25 plastic
ManufacturerWiska
HAN10100666
GTIN4007685058131
VersionStraight
EMC versionNo
Operating temperature-20 to 100 °C
ColorGray
Halogen freeYes
With strain reliefYes
Surface protectionUntreated
RAL number7035
IP protection)IP68
MaterialPlastic
Material qualityPolyamide (PA)
