Wiska 10102370 EVPS 12 RAL 9005 M12 pressure equalization plug

Wiska 10102370 EVPS 12 RAL 9005 M12 pressure equalization plug

In stock

SKU: 633575

Price on request

€4.22

€0

Into a basketIn the basketGo

Overview

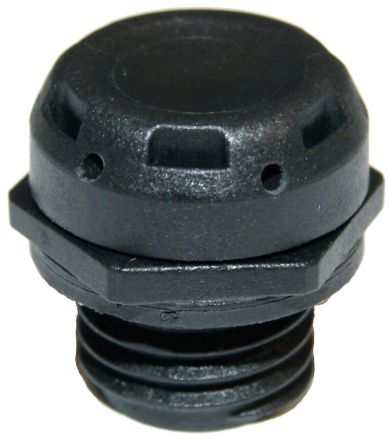

The breathing screw plug has an ePTFE membrane and is used as a pressure equalization element for ventilating housings.

Property	Value
Wrench size:	16 mm
Thread pitch:	1.5 mm
Metric thread size:	12
Hexagon corner size:	18 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	8 mm
Thread type:	metric
Color:	black
RAL number:	9005
Material:	plastic
Impact-resistant:	yes
Material quality:	polyamide (PA)
Design:	straight
With strain relief:	no
Surface protection:	untreated
Bending protection:	no
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable screw connection:	no
Dividable Screw connection:	no
Explosion-tested version:	no
For Ex-Zone Gas:	without
For Ex-Zone Dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
Pressure equalizing:	no

Characteristics

Impact resistantYes

Explosion-tested versionNo

Fiberglass reinforcedNo

ShieldedNo

Wrench size16 mm

HABEVPS 12 RAL 9005 M12

Manufacturer

HAN10102370

GTIN4007685048736

VersionStraight

EMC versionNo

Operating temperature-40 to 100 °C

Color

Thread typeMetric

Thread length8 mm

Thread1.5 mm

Halogen freeYes

With strain reliefNo

Surface protectionUntreated

RAL number9005

IP protection)IP68

MaterialPlastic

Material qualityPolyamide (PA)
