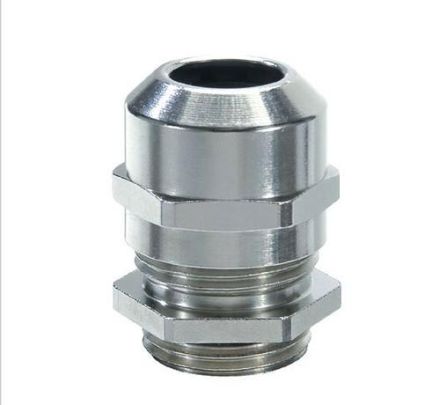

Wiska 10104386 EMSKE 75 brass cable gland

In stock
SKU: 765974
€101.11
Into a basketIn the basketGo

Overview

SPRINT® Ex cable gland made of brass for indoor and outdoor use. Optimum sealing and strain relief thanks to the special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing using a mounted O-ring. All seals are made of EPDM and are characterized by excellent resistance to water, ozone, UV radiation and chemicals. Approved according to ATEX and IECEx.

Property Value
Wrench size: 82 mm
Thread pitch: 1.5 mm
Metric thread nominal size: 75
Suitable for cable diameters: 48 to 62 mm
Hexagon corner size: 90 mm
Protection class (IP): IP68
Operating temperature: -40 to 75 °C
Halogen-free: yes
Thread length: 12 mm
Thread type: metric
Color: silver
Material: metal
Impact-resistant: yes
Material quality: brass
Design: straight
With strain relief: yes
Surface protection: nickel-plated
Type of seal: Sealing ring
Bending protection: no
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: no
Flat cable gland: no
Dividable Screw connection: no
Explosion-tested version: yes
For Ex-zone gas: 1, 2
For Ex-zone dust: 21, 22
Snaps into opening: no
For armored cables: no
EMC version: no
Shielded: no
Pressure equalizing: no

Characteristics

Impact resistantYes
Explosion-tested versionYes
Fiberglass reinforcedNo
ShieldedNo
Suitable for cable diameter48 to 62mm
Wrench size82 mm
HABEMSKE 75
ManufacturerWiska
HAN10104386
GTIN4007686000849
VersionStraight
EMC versionNo
Operating temperature-40 to 75 °C
ColorSilver
Thread typeMetric
Thread length12 mm
Thread1.5 mm
Halogen freeYes
With strain reliefYes
Surface protectionNickel-plated
IP protection)IP68
MaterialMetal
Material qualityBrass
