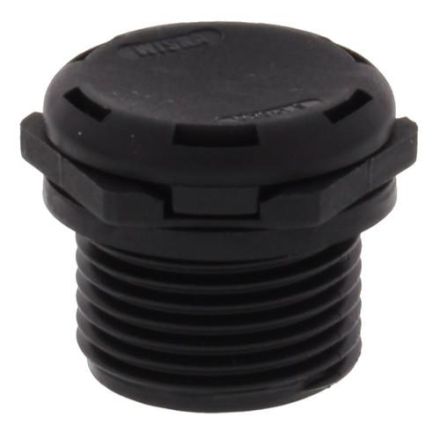

Wiska 10106596 EVPS-L 20 screw plug

In stock

SKU: 765953

Price on request

€6.89

€0

Overview

VentPLUG products are used wherever a cable gland with an additional pressure compensation element is required to ventilate the housing. The air flow at 70mbar is: 110l/h

Property	Value
Wrench size:	24 mm
Thread pitch:	1.5 mm
Metric thread size:	20
Hexagon corner size:	27 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	15 mm
Thread type:	metric
Color:	black
RAL number:	9005
Material:	Plastic
Impact-resistant:	yes
Material quality:	Polyamide (PA)
Design:	straight
With strain relief:	no
Surface protection:	untreated
Type of seal:	Sealing ring
Bending protection:	no
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable screw connection:	no
Dividable screw connection:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
Pressure equalizing:	no
