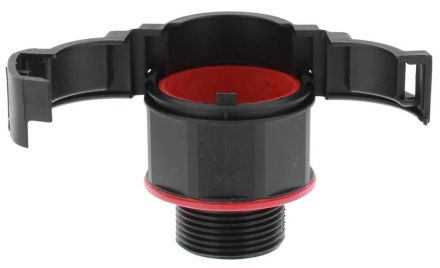

Wiska 10106875 EBFS-48-50-BK straight plastic cable gland

In stock
SKU: 634112
€12.54
Into a basketIn the basketGo

Overview

Thanks to the large-area integrated seal, the BRACE plastic hose fitting does not require any special cutting tools for the corrugated pipe. The integrated, captive seal is visible from the outside at all times and makes additional assembly and inspection unnecessary. The innovative 360 snap closure ensures integrated strain relief.

Property Value
Thread size: M50 x 1.5
Design: straight
Rotatable thread: no
Design: external thread
Connection type: plug connection
Thread type: metric
Thread material: Polyamide (PA)
Thread length: 15 mm
Length: 56.8 mm
Seal material: Thermoplastic elastomers (TPE)
Color: black
Nominal diameter: 48 mm
Protection class (IP): IP68
Material: Polyamide (PA)
Operating temperature: -40 to 100 °C

Characteristics

HABEBFS-48-50-BK straight
ManufacturerWiska
HAN10106875
GTIN4007686033410
VersionStraight
DesignExternal thread
Rotating threadNo
Operating temperature-40 to 100 °C
ColorBlack
Thread typeMetric
Length56.8 mm
Nominal diameter48 mm
IP protection)IP68
Connection typePlug connection
MaterialPolyamide (PA)
Wiska 10106875 EBFS-48-50-BK straight plastic cable gland
Wiska 10106875 EBFS-48-50-BK straight plastic cable gland
€12.54
Into a basketIn the basketGo
