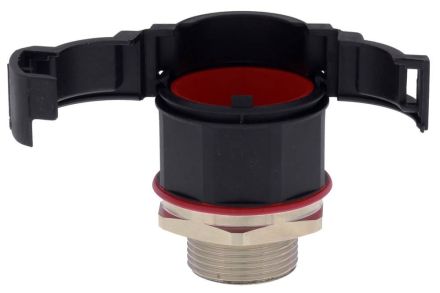

Wiska 10106898 EMBFS-14-20-BK straight brass screw connection

In stock
SKU: 634169
€6.26
Into a basketIn the basketGo

Overview

Our BraceFITTING made of plastic with a metal connection thread simplifies installation and reliably protects cables. With protection class IP68 as standard, it meets the highest demands in use. The locking system, which grips directly into the corrugated pipes, results in impressive tear resistance. Thanks to the molded-on, captive sealing ring, perfect sealing properties are achieved and the coloring saves time during assembly and inspection.

Property Value
Thread size: M20 x 1.5
Design: straight
Rotatable thread: no
Design: external thread
Connection type: plug connection
Thread type: metric
Thread material: Brass
Thread length: 10.5 mm
Length: 48.1 mm
Seal material: Thermoplastic elastomers (TPE)
Color: black
Nominal diameter: 14 mm
Protection class (IP): IP68
Material: Polyamide (PA)
Operating temperature: -40 to 100 °C
Transparent: no

Characteristics

HABEMBFS-14-20-BK straight
ManufacturerWiska
HAN10106898
GTIN4007686033878
VersionStraight
DesignExternal thread
Rotating threadNo
Operating temperature-40 to 100 °C
ColorBlack
Thread typeMetric
Length48.1 mm
Nominal diameter14 mm
IP protection)IP68
TransparentNo
Connection typePlug connection
MaterialPolyamide (PA)
