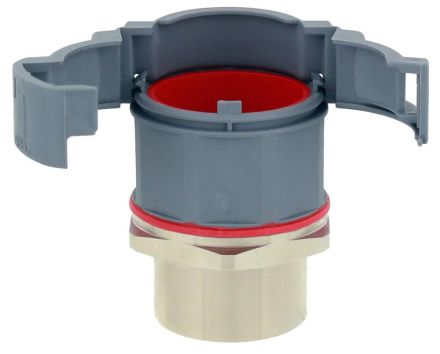

Wiska 10106917 EMBFSI-17-20-BG straight internal thread brass screw connection

In stock
SKU: 634135
€6.26
Into a basketIn the basketGo

Overview

Our BraceFITTING made of plastic with a metal connection thread simplifies installation and reliably protects cables. With protection class IP68 as standard, it meets the highest demands in use. The locking system, which grips directly into the corrugated pipes, results in impressive tear resistance. Thanks to the molded-on, captive sealing ring, perfect sealing properties are achieved and the coloring saves time during assembly and inspection.

Property Value
Thread size: M20 x 1.5
Design: straight
Rotatable thread: no
Design: internal thread
Connection type: plug connection
Thread type: metric
Thread material: Brass
Thread length: 12 mm
Length: 50.6 mm
Seal material: Thermoplastic elastomers (TPE)
Color: gray
Nominal diameter: 17 mm
Protection class (IP): IP68
Material: Polyamide (PA)
Operating temperature: -40 to 100 °C
Transparent: no

Characteristics

HABEMBFSI-17-20-BG straight internal thread
ManufacturerWiska
HAN10106917
GTIN4007686034226
VersionStraight
DesignInner thread
Rotating threadNo
Operating temperature-40 to 100 °C
ColorGray
Thread typeMetric
Length50.6 mm
Nominal diameter17 mm
IP protection)IP68
TransparentNo
Connection typePlug connection
MaterialPolyamide (PA)
