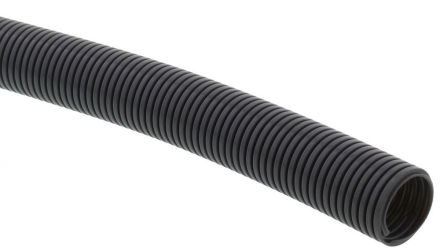

Wiska 10107090 BCAV-S-17-BK RAL 9005 NW17 corrugated pipe

In stock

SKU: 634314

Price on request

€2.31

€0

Overview

Suitable for protecting cables from mechanical stress, sand or moisture in order to avoid sources of error. Can be used for both static and dynamic applications.

Property	Value
Lengthwise slotted:	no
Lockable (two-part):	no
Approval according to DIN EN 61386-23:	no
Approval according to NF F 16-101:	no
Nominal diameter:	17 mm
Inner diameter:	16.6 mm
Outer diameter:	21.2 mm
Compressive strength:	125 N
Operating temperature:	-40 to 125 °C
Fire protection according to UL94:	V2
Bending radius, static:	56 mm
UV-resistant:	yes
Oil-resistant:	yes
Color:	black
Sheathing material:	without sheathing
Flame-spreading:	no
Tensile strength:	100 N
Halogen-free:	yes
Approval according to UR:	no
Approval according to VdTÜV/GGVSEB:	no
Approval according to CSA:	no
Approval according to LUL/British Standard:	no
Approval according to Lloyds Register TA:	no
Approval according to UTAC:	no
Approval according to DIN 5510:	no
Material:	Polyamide (PA)
Protection class (IP):	IP68
Bending behavior:	flexible
With pull wire:	no
Highly slippery inner layer:	no
Flush-mounted installation:	no
Surface-mounted installation:	yes
Material quality:	Polyamide 6
