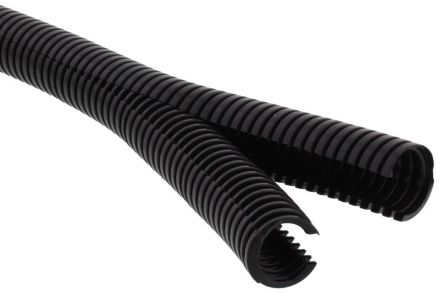

Wiska 10107122 BCA-17-D-BK PA6 V2 split corrugated pipe

In stock

SKU: 634188

Price on request

€3.90

€0

Overview

Plastic protective hose to protect cables from mechanical stress, sand and moisture.

Property	Value
Lengthwise slit:	yes
Lockable (two-part):	yes
Approval according to DIN EN 61386-23:	no
Approval according to NF F 16-101:	no
Nominal diameter:	17 mm
Inner diameter:	13.9 mm
Outer diameter:	21 mm
Operating temperature:	-40 to 140 °C
Fire protection according to UL94:	V0
Bending radius, static:	85 mm
UV-resistant:	yes
Oil-resistant:	yes
Color:	black
Sheathing material:	without sheathing
Halogen-free:	yes
Approval according to UR:	no
Approval according to VdTÜV/GGVSEB:	no
Approval according to CSA:	no
Approval according to LUL/British Standard:	no
Approval according to Lloyds Register TA:	no
Approval according to UTAC:	no
Approval according to DIN 5510:	no
Material:	Polyamide (PA)
Bending behavior:	flexible
With pull wire:	no
Highly slippery inner layer:	no
Flush-mounted installation:	no
Surface-mounted installation:	yes
Material quality:	Polyamide 6
