Wiska 10109049 BMCG-PVC-S-16-LG-GT RAL 7035 steel protection hose

In stock

SKU: 634377

Price on request

€16.02

€0

Overview

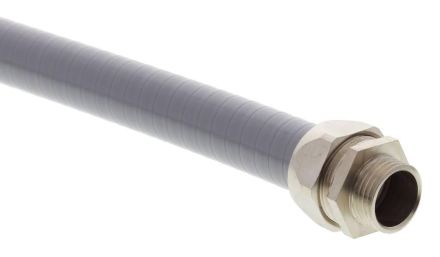

Metallic protective hose with PVC sheath to protect cables under extreme mechanical stress. This hose is designed for a wider temperature range.

Property	Value
Nominal diameter:	16 mm
Surface protection:	galvanized
Sheath material 1st layer:	Polyvinyl chloride (PVC), flame retardant
Inner diameter:	15.5 mm
Outer diameter:	21.5 mm
Compressive strength:	1250 N
Operating temperature:	-40 to 105 °C
Tensile strength:	1000 N
Bending radius, static:	70 mm
Color:	grey
Electrical properties:	with conductive properties
Flame propagating:	no
Suitable for Ex areas:	no
Approval according to FI:	no
UL approved:	no
Material:	steel
Protection class (IP):	IP67
Bending behavior:	flexible
