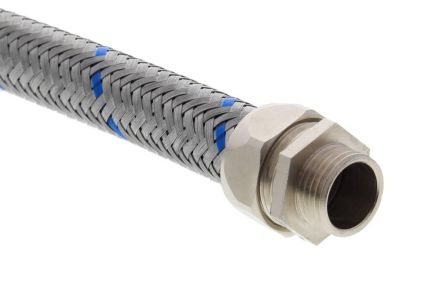

Wiska 10109085 BMCG-PVC-C-BG-40 coated NW40 steel protective hose

In stock

SKU: 634413

Price on request

€54.61

€0

Overview

Metallic protective hose with PVC sheathing to protect cables under extreme mechanical stress. This protective hose is characterized by excellent properties in the event of a fire.

Property	Value
Nominal diameter:	40 mm
Surface protection:	galvanized
Sheathing material 1st layer:	Polyvinyl chloride (PVC), flame retardant
Sheathing material 2nd layer (outer):	other
Inner diameter:	39.5 mm
Outer diameter:	47.5 mm
Compressive strength:	1250 N
Operating temperature:	-15 to 70 °C
Tensile strength:	1000 N
Bending radius, static:	160 mm
Weight:	1.105 kg/m
Color:	other
Electrical properties:	with conductive properties
Flame propagating:	no
Suitable for Ex areas:	no
Approval according to FI:	no
With approval according to UL:	no
Material:	steel
Protection class (IP):	IP67
Bending behavior:	flexible
