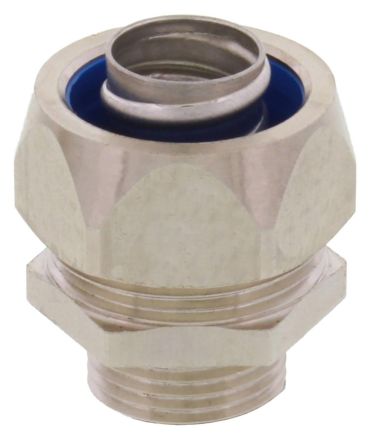

Wiska 10109111 EMBMFS-S-35-40 brass screw connection

In stock
SKU: 634324
€58.72
Into a basketIn the basketGo

Overview

Our metal BraceFITTING simplifies installation and reliably protects cables. With protection class IP67 as standard, it meets the highest demands in application. The different colors of the sealing rings tell the user at first glance which protective hose is the right one.

Property Value
Protection class (IP) depending on hose: 20 to 67
Nominal diameter: 35 mm
Thread connection size: M40 x 1.5
Total length: 46.8 mm
Thread length: 11 mm
Rotatable thread: no
Design: straight
Construction: external thread
One-piece: no
Housing material: brass
Surface protection: nickel-plated
Operating temperature: -15 to 70 °C
Thread type: metric
Type of screw connection to housing: thread
Number of entries: 1
With earth connection: no

Characteristics

One-pieceNo
Connection type of screw connection to the housingThread
Protection class (IP) depends on hose20 to 67
With earth connectionNo
HABEMBMFS-S-35-40
ManufacturerWiska
HAN10109111
GTIN4007686081138
VersionStraight
DesignExternal thread
Rotating threadNo
Operating temperature-15 to 70 °C
Overall length46.8 mm
Thread connection sizeM40x1.5
Thread typeMetric
Thread length11 mm
Nominal diameter35 mm
Surface protectionNickel-plated
Housing materialBrass
