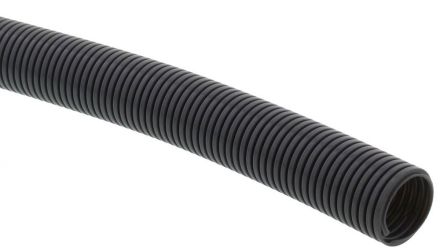

Wiska 10109214 BCAV-H-48-BG PA6 V2 corrugated pipe

In stock

SKU: 634265

Price on request

€14.28

€0

Overview

Plastic protective hose to protect cables from mechanical stress, sand and moisture.

Property	Value
Lengthwise slit:	no
Lockable (two-part):	no
Approval according to DIN EN 61386-23:	no
Approval according to NF F 16-101:	no
Nominal diameter:	48 mm
Inner diameter:	45.5 mm
Outer diameter:	54.5 mm
Compressive strength:	320 N
Operating temperature:	-40 to 125 °C
Fire protection according to UL94:	V2
Bending radius, static:	112 mm
UV-resistant:	yes
Oil-resistant:	yes
Color:	gray
Sheathing material:	without sheathing
Flame-propagating:	no
Tensile strength:	100 N
Halogen-free:	yes
Approval according to UR:	no
Approval according to VdTÜV/GGVSEB:	no
Approval according to CSA:	no
Approval according to LUL/British Standard:	no
Approval according to Lloyds Register TA:	no
Approval according to UTAC:	no
Approval according to DIN 5510:	no
Material:	Polyamide (PA)
Protection class (IP):	IP68
Bending behavior:	flexible
With pull wire:	no
Highly slippery inner layer:	no
Flush-mounted installation:	no
Surface-mounted installation:	yes
Material quality:	Polyamide 6
