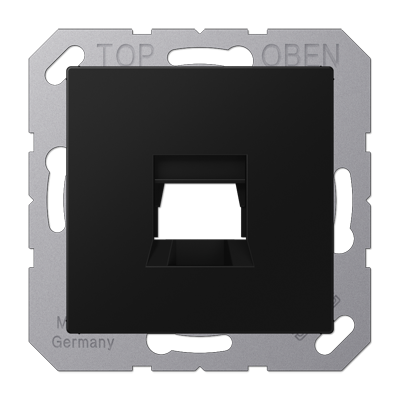

Jung A1569-15WESWM cover (latched) for modular jack sockets 1-way, EMT, AMP, MTRJ, thermoplastic painted, series A, graphite black matt

In stock
SKU: 709564
€13.82
Into a basketIn the basketGo

Overview

Cover (snapped) for modular jack sockets 1-way, EMT, AMP, MTRJ, painted thermoplastic, Series A, matt graphite black (complete with supporting ring, screw fastening)
Closing flap with return spring
for modular jack sockets
TE Connectivity (Tyco Electronics / AMP NETCONNECT)
for cable Ø max. 10 mm:
EMT Cat. 5e, 180° Item no. 0-0188650-5
EMT Cat. 5e, 90° Item no. 0-0188650-6
for cable Ø max. 6.5 mm:
EMT Cat. 5e, 180° Item no. 0-0338038-1
EMT Cat. 5e, 90° Item no. 0-0338038-2
Toolless Jack Cat. 3 unshielded: Item no. 0-1116603-x
Toolless Jack Cat. 5e unshielded: Item no. 0-1116604-x,
Toolless Jack Cat. 5e shielded: Item no. 0-1339015-1
Toolless Jack Cat. 6 unshielded: Item no. 0-1116605-x,
Toolless Jack Cat. 6 shielded: Item no. 0-1339016-1
MTRJ-LWL-Jack (fiber optic jack): Item no. 1278414-1, deep box (at least 62 mm) required
for 1 socket

Property Value
Mounting type: Clamp fastening
Color: black
Device height: 55 mm
Device width: 55 mm
Labeling field: without labeling field
Use: Modular jack
With dust protection: yes
Mounting type: Surface-mounted
With hinged lid: no
Suitable for protection class (IP): IP20
Composition: other
Support ring: yes
With print: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface finish: matt
With strain relief: no
Lamp terminal: no
Transparent: no
Outlet direction: straight
With bushings/couplings: no
Suitable for number of sockets/couplings: 1
Housing shielded: no

Characteristics

Insert Module TypeLight switch covers
ColorBlack
HABA1569-15WESWM f.MJ 1f. WE (TE-connect.)
ManufacturerJung
HANA1569-15WESWM
GTIN4011377189270
Surface finishFrosted
Outlet directionStraight
Mounting typeClamp fastening
Label fieldWithout label field
ColorBlack
Suitable for number of sockets/couplings1
Suitable for protection class (IP)IP20
Housing shieldedNo
Device width55 mm
Device height55 mm
Halogen freeYes
Lamp terminalNo
With printNo
With bushings/couplingsNo
With hinged lidNo
With dust protectionYes
With strain reliefNo
Mounting typeSurface-mounted
Support ringYes
TransparentNo
UseModular Jack
MaterialPlastic
Material qualityThermoplastic
CompilationOther
