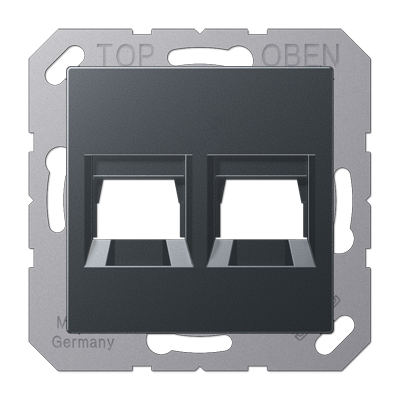

Jung A1569-25WEANM cover (latched) for modular jack sockets 2-way, EMT, AMP, MTRJ, thermoplastic painted, series A, matt anthracite

In stock
SKU: 709629
€14.47
Into a basketIn the basketGo

Overview

Cover (snapped) for 2-way modular jack sockets, EMT, AMP, MTRJ, painted thermoplastic, Series A, matt anthracite (complete with supporting ring, screw fastening)
Closing flap with return spring
for modular jack sockets
TE Connectivity (Tyco Electronics / AMP NETCONNECT)
for cable Ø max. 10 mm:
EMT Cat. 5e, 180° Item no. 0-0188650-5
EMT Cat. 5e, 90° Item no. 0-0188650-6
for cable Ø max. 6.5 mm:
EMT Cat. 5e, 180° Item no. 0-0338038-1
EMT Cat. 5e, 90° Item no. 0-0338038-2
Toolless Jack Cat. 3 unshielded: Item no. 0-1116603-x
Toolless Jack Cat. 5e unshielded: Item no. 0-1116604-x,
Toolless Jack Cat. 5e shielded: Item no. 0-1339015-1
Toolless Jack Cat. 6 unshielded: Item no. 0-1116605-x,
Toolless Jack Cat. 6 shielded: Item no. 0-1339016-1
MTRJ-LWL-Jack (fiber optic jack): Item no. 1278414-1, deep box (at least 62 mm) required
for 2 sockets

Property Value
Mounting type: Clamp fastening
Color: anthracite
Device height: 55 mm
Device width: 55 mm
Labeling field: without labeling field
Use: Modular jack
With dust protection: yes
Mounting type: Surface-mounted
With hinged lid: no
Suitable for protection class (IP): IP20
Composition: other
Support ring: yes
With print: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface finish: matt
With strain relief: no
Lamp terminal: no
Transparent: no
Outlet direction: straight
With bushings/couplings: no
Suitable for number of sockets/couplings: 2
Housing shielded: no

Characteristics

Insert Module TypeLight switch covers
ColorAnthracite
Gang2 gang
HABA1569-25WEANM f.MJ 2f. WE (TE-connect.)
ManufacturerJung
HANA1569-25WEANM
GTIN4011377177635
Surface finishFrosted
Outlet directionStraight
Mounting typeClamp fastening
Label fieldWithout label field
Suitable for number of sockets/couplings2
Suitable for protection class (IP)IP20
Housing shieldedNo
Device width55 mm
Device height55 mm
Halogen freeYes
Lamp terminalNo
With printNo
With bushings/couplingsNo
With hinged lidNo
With dust protectionYes
With strain reliefNo
Mounting typeSurface-mounted
Support ringYes
TransparentNo
UseModular Jack
MaterialPlastic
Material qualityThermoplastic
CompilationOther
