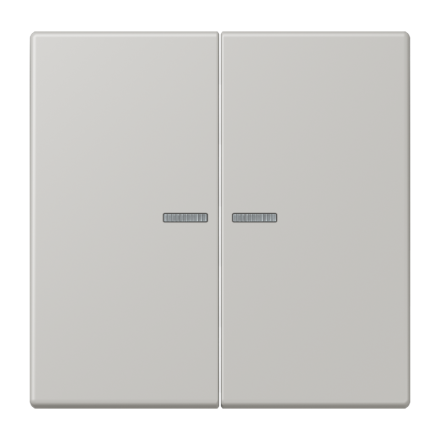

JUNG HOME button 2-way, LS series, gris clair 31 for inserts 'blinds' item no.: 1730 JE and 1731 JE
for inserts 'light' item no.: 1701 SE, 1701 PSE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1712 DE, 1713 DSTE, 1723 NE
Intended use
Manual and automatic operation of e.g. B. Curtains, lighting or fans
Wireless link with devices of the JUNG HOME system
Operation with system insert for switching, dimming, blinds or 3-wire extension
Product features
Commissioning and operation via JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
Operation from above, below and full surface with up to 2 linked functions per rocker
Use control buttons to control groups, central functions or to call up scenes
Use control buttons to operate wirelessly linked JUNG HOME devices
Multi-coloured status display with optional night mode
Actuator status feedback via status LED
Locking of local operation
Integration of the local actuator in groups, central functions and scenes
Up to 16 time programs control the functions of the respective insert (e.g. ON/OFF switching, dimming, moving blinds, temperature adjust)
Staircase light function (lighting cannot be switched off manually) with switch-off warning
Follow-up time
Activate/deactivate automatic operation via JUNG HOME app
Automatic summer/winter time changeover
Automatic date and time update when connected to smartphone
Maximum brightness and minimum brightness adjustable, with dimmer insert
Switch on with last brightness or fixed switch-on brightness, with dimmer insert
Ventilation position, curtain running time, slat reversal time, reversal time when changing direction and inverse operation adjustable, with blind insert
Evaluation of the extension inputs (if available) to control the insert
Bluetooth® SIG Mesh for fully encrypted wireless communication and repeater function
Can be updated via JUNG HOME app
Available in the future via update:
(Information on updates and dates can be found at www.jung.de/JUNGHOME)
Control buttons use to trigger the locking and forced function
Time programs with sunrise or sunset (astro function)
Time programs with random time
Locking and forced function: lock-out protection, permanent ON/OFF or ON/OFF for a fixed time
Night light function with period for brightness reduction, with dimming insert
Hotel function (orientation light instead of OFF), with dimming insert
Warm dimming (changing the color temperature with simultaneous increase in brightness), with DALI insert
On/off delay
A labeling order from the GRAPHIC TOOL must be placed together with the order: www.jung.de/gt
Subsequent labeling of the buttons is not possible.
| Property | Value |
| Application: | Controlling electrical consumers |
| Color: | other |
| Suitable for dimming insert: | yes |
| Suitable for blind insert: | yes |
| Suitable for switching insert: | yes |
| Material: | Plastic |
| Material quality: | Duroplast |
| Halogen-free: | yes |
| Surface finish: | matt |
| Number of actuation points: | 4 |
| Number of buttons: | 2 |
| With cover: | yes |
| With LED display: | yes |
| Transparent: | no |
