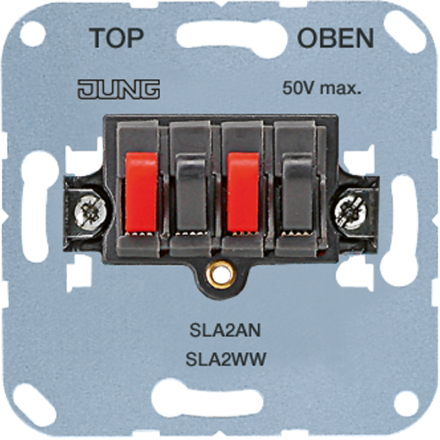

Jung SLA2AN stereo loudspeaker connection box 25 V ~, 60 V DC, anthracite

In stock
SKU: 143550
€18.40
Into a basketIn the basketGo

Overview

Stereo loudspeaker connection box 25 V ~, 60 V DC, anthracite conductor cross-section max. 10 mm2
with 4 spring terminals on the front, marked red/black
screw terminals on the back
also suitable for safety extra-low voltage
Covers:
AS / A series: Item no.: A 569 PLT ..
CD series: Item no.: CD 569 T .. (non-metal versions)
LS series: Item no.: .. 969 T .., .. 2969 T ..

Property Value
Mounting type: Mounting with screw
Color: anthracite
Labeling field: without labeling field
Use: Speaker connection
With dust protection: no
Mounting type: Flush-mounted
With hinged lid: no
Suitable for protection class (IP): IP20
Composition: Basic element
Support ring: yes
With print: no
Halogen-free: yes
With strain relief: no
Lamp terminal: yes
Outlet direction: straight
With sockets/couplings: yes
Suitable for number of sockets/couplings: 2
Housing shielded: no

Characteristics

ManufacturerJung
HANSLA2AN
GTIN4011377995741
Outlet directionStraight
Mounting typeFastening with screw
Label fieldWithout label field
Suitable for number of sockets/couplings2
Suitable for protection class (IP)IP20
Housing shieldedNo
Halogen freeYes
Lamp terminalYes
With printNo
With bushings/couplingsYes
With hinged lidNo
With dust protectionNo
With strain reliefNo
Mounting typeFlush-mounted
Support ringYes
UseSpeaker connection
CompilationBasic element
