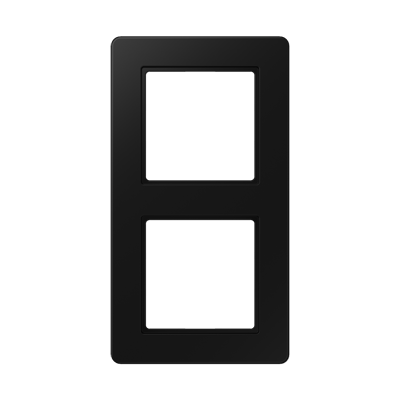

Jung AF582BFSWM frame 2-way, vertical and horizontal mounting, thermoplastic painted, A FLOW, graphite black matt

Jung AF582BFSWM frame 2-way, vertical and horizontal mounting, thermoplastic painted, A FLOW, graphite black matt

In stock

SKU: 709736

Price on request

€10.11

€0

Overview

Double frame, vertical and horizontal installation, painted thermoplastic, A FLOW, matt graphite black Double frame, matt graphite black
for horizontal and vertical combination
for the A series
Single frame also suitable for British standard installations (support ring 80 x 80)
IP20
Material: painted thermoplastic
Dimensions (W x H): 85 x 156 mm

Property	Value
Height:	156 mm
Width:	85 mm
Material:	Plastic
Mounting direction:	horizontal and vertical
Number of units:	2
Color:	black
Suitable for built-in installation:	yes
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	10 mm
Suitable for device installation duct:	yes
Material quality:	Thermoplastic
Surface:	painted
Surface finish:	matt
Number of units horizontal:	1
Number of units vertical:	2
Mounting type:	other
Installation width:	55 mm
Installation height:	55 mm
Transparent:	no
With mounting frame:	no
