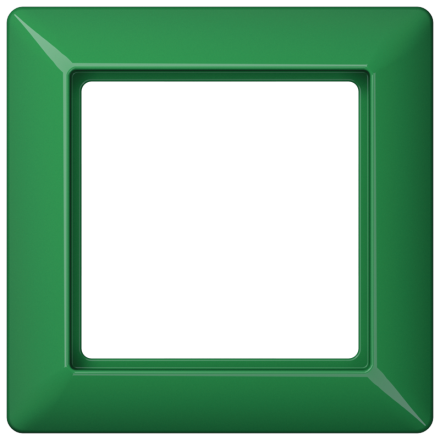

Jung AS581BFGN frame 1-way, vertical and horizontal mounting, thermoplastic, AS 500, green (for SV)

Jung AS581BFGN frame 1-way, vertical and horizontal mounting, thermoplastic, AS 500, green (for SV)

In stock

SKU: 140860

Price on request

€5.01

€0

Overview

Frame 1-way, vertical and horizontal installation, thermoplastic, AS 500, green (for SV) Frame 1-way, green (for SV)
for horizontal and vertical combination
With sealing flange item no.: 551 WU, protection level IP 44 is guaranteed.
Material: thermoplastic
Dimensions (W x H): 80.5 x 80.5 mm

Property	Value
Height:	80.5 mm
Width:	80.5 mm
Material:	Plastic
RAL number (similar):	6029
Mounting direction:	horizontal and vertical
Number of units:	1
Color:	green
Protection class (IP):	IP44
Suitable for built-in installation:	yes
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	10 mm
Suitable for device installation duct:	yes
Material quality:	Thermoplastic
Surface:	other
Surface finish:	glossy
Number of units horizontal:	1
Number of units vertical:	1
Mounting type:	other
Installation width:	55 mm
Installation height:	55 mm
Transparent:	no
With mounting frame:	no
