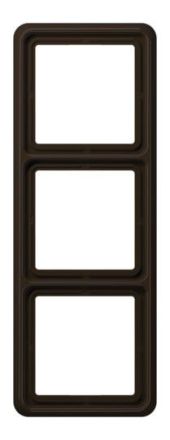

Jung CD583WUBR frame 3-way, vertical and horizontal mounting, thermoplastic, CD 500, brown

Jung CD583WUBR frame 3-way, vertical and horizontal mounting, thermoplastic, CD 500, brown

In stock

SKU: 141641

Price on request

€15.46

€0

Overview

Frame 3-way, vertical and horizontal installation, thermoplastic, CD 500, brown Frame 3-way, brown
for horizontal and vertical combination
With sealing flange item no.: 551 WU, protection level IP 44 is guaranteed.
Material: thermoplastic
Dimensions (W x H): 81 x 223 mm

Property	Value
Height:	223 mm
Width:	81 mm
Material:	Plastic
RAL number (similar):	8022
Mounting direction:	horizontal and vertical
Number of units:	3
Color:	brown
Protection class (IP):	IP44
Suitable for built-in installation:	yes
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	10 mm
Suitable for device installation duct:	yes
Material quality:	Thermoplastic
Surface:	other
Surface finish:	glossy
Number of units horizontal:	1
Number of units vertical:	3
Mounting type:	other
Installation width:	67 mm
Installation height:	67 mm
Transparent:	no
With mounting frame:	no
