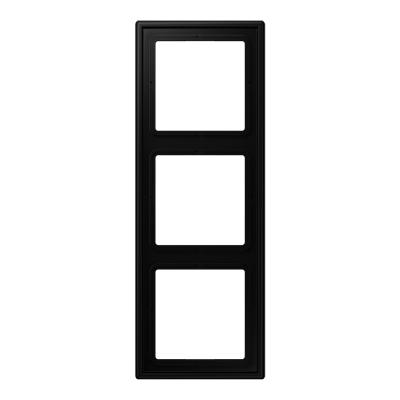

Jung LS983SWM frame 3-way, vertical and horizontal mounting, LS 990, graphite black matt

Jung LS983SWM frame 3-way, vertical and horizontal mounting, LS 990, graphite black matt

In stock

SKU: 709738

Price on request

€17.58

€0

Overview

Frame 3-way, vertical and horizontal installation, LS 990, matt graphite black Frame 3-way, matt graphite black
for horizontal and vertical combination
With sealing flange item no.: 551 WU, protection level IP 44 is guaranteed.
Material: painted duroplast
Dimensions (W x H): 81 x 223 mm

Property	Value
Height:	223 mm
Width:	81 mm
Material:	Plastic
Installation direction:	horizontal and vertical
Number of units:	3
Color:	black
Protection class (IP):	IP44
Suitable for built-in installation:	yes
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	11 mm
Suitable for device installation duct:	yes
Material quality:	Duroplast
Surface:	painted
Surface finish:	matt
Number of units horizontal:	1
Number of units vertical:	3
Mounting type:	other
Installation width:	70 mm
Installation height:	70 mm
Transparent:	no
With mounting frame:	no
