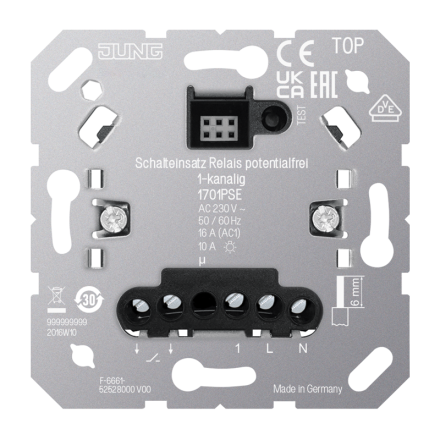

Jung 1701PSE switching insert relay, 1-channel, with extension input

In stock
SKU: 881508
€65.62
Into a basketIn the basketGo

Overview

Switching insert relay, 1-channel, with extension input with extension input
for attachments eNet item no.: FM .. 1700 .., FM .. 1701 ..
for attachments LB-Management item no.: .. 1700 .., .. 1701 .., .. 1750 D .., .. 1751 BT .., .. 17180 .., .. 17280 .., .. 17181 .., .. 17281 .., DWPM 17360 .., .. 1790 D .. (from version V03)
for attachments KNX RF item no.: .. 10911 ST RF .., .. 10921 ST RF ..
Intended use
Switching of potential-separated circuits for lighting
Control of electric underfloor heating and electrothermal actuators in combination with a room temperature controller attachment or KNX RF button
Operation with suitable attachment
Installation in device box with dimensions according to DIN 49073

Product features
Connection of extensions possible
Adjustable time function
Nominal voltage: AC 230 V ~
Mains frequency: 50/60 Hz
Standby power depending on attachment: approx. 0.1 ... 0.5 W
Ambient temperature: 25 ... +45 °C
Storage/transport temperature: 20 ... +70 °C
Switching current at 35 °C
With switching current >, 10 A connection cable 2.5 mm2
Ohmic: 16 A (AC1)
Fluorescent lamps: 4 AX
Connected load at 35 °C
Incandescent lamps: 2300 W
HV halogen lamps: 2000 W
Electronic transformers: 1500 W
Inductive transformers: 1000 VA
HV LED lamps: typ. 400 W
Fluorescent lamps uncompensated: 920 VA
Capacitive load: 920 VA (115 µF)
Power reduction
per 5 °C exceedance of 25 °C: 5 %
when installed in wooden or drywall: 15 %
when installed in multiple combinations: 20 %
Number Actuators: 1 ... 10
Number of extensions
Extension 2-wire 1720 NE: unlimited
Button: unlimited
Extension 3-wire 1723 NE: 10
Rotary extension 3-wire 1733 DNE: 10

Property Value
Mounting type: Claw/screw fastening
Nominal voltage: 230 V
Mounting type: Flush-mounted
Load type: universal
Frequency: 50.0 to 60.0 Hz
Switching capacity: 2300.0 W
Composition: Base element
Material: other
Can be used with button: yes
Can be used with motion detector: yes
Extension input: yes
Can be used with radio button: yes
Can be used with IR button: no
Can be used with presence detector: yes
Material quality: other
Can be used with timer: yes
Surface: untreated
Design: relay
Rated current: 16 A
Transparent: no

Characteristics

HABRelay potential-free 1-channel
ManufacturerJung
HAN1701PSE
GTIN4011377206946
VersionRelay
Mounting typeClaw/screw fastening
Rated current16A
Frequency50.0 to 60.0 Hz
Mounting typeFlush-mounted
Extension inputYes
Nominal voltage230V
SurfaceUntreated
TransparentNo
MaterialOther
Material qualityOther
CompilationBasic element
