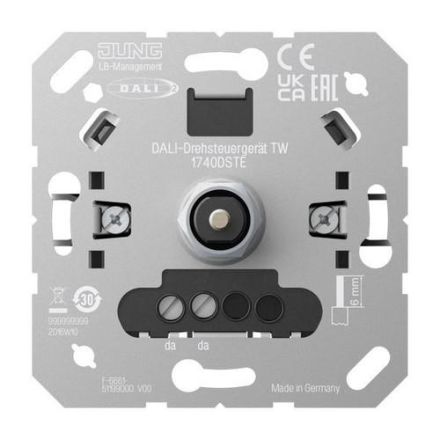

DALI rotary control device TW Intended use Brightness setting for lights with DALI/DALI-2 interface Color temperature setting for lights with DALI Device Type 8 for Tunable White in accordance with IEC 62386-209 Installation in device box with dimensions in accordance with DIN 49073 Product features The DALI rotary control device TW is powered by the DALI voltage, which must be provided by an external DALI power supply in accordance with IEC 62386-101. Saving color temperature limit values Saving the basic brightness and a switch-on brightness Certified in accordance with IEC 62386-101 and -103 (single master) The device works as a DALI-2 single master and must not be combined with other DALI controls. (external DALI power supply according to IEC 62386-101 required) Nominal voltage DALI: DC 16 V (typ.) Power consumption: max. 2 W Ambient temperature: 5 ... +45 °C Color temperature setting: 2,000 ... 10,000 K
