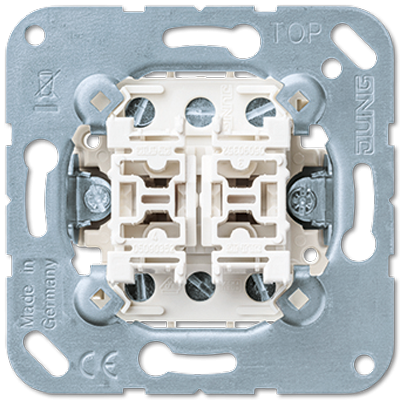

Jung 509-20U rocker switch, 20 AX 250 V ~, double changeover

Jung 509-20U rocker switch, 20 AX 250 V ~, double changeover

In stock

SKU: 763605

Price on request

€28

€0

Into a basketIn the basketGo

Overview

Rocker switch, 20 AX 250 V ~, double changeover with screw terminals for rigid and flexible conductors up to 4 mm2

Property	Value
Suitable for protection class (IP):	IP20
Circuit type:	Changeover/changeover switch
Operating type:	Rocker/button
Number of actuating rockers:	2
Mounting type:	Flush-mounted
Push button:	no
Composition:	Base element
Mounting type:	Claw/screw fastening
Halogen-free:	yes
Rated voltage:	250 V
Switching current for fluorescent lamps:	20 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	Screw terminal
Lighting:	no
Installation depth:	32 mm
Device width:	71 mm
Device height:	71 mm
With mounting plate:	no
Text field/labeling area:	no

Characteristics

Feedback contactNo

Number of actuating rockers2

Circuit typeChangeover/changeover switch

LightingNo

Switching current for fluorescent lamps20 AX

Push buttonNo

Washing machine switchNo

HAB509-20U Double Change

Manufacturer

HAN509-20U

GTIN4011377268951

Connection typeScrew terminal

Operating modeRocker/Button

Mounting typeClaw/screw fastening

Installation depth32 mm

Suitable for protection class (IP)IP20

Device width71 mm

Device height71 mm

Halogen freeYes

With mounting plateNo

Mounting typeFlush-mounted

Nominal voltage250V

Text field/label areaNo

CompilationBasic element
