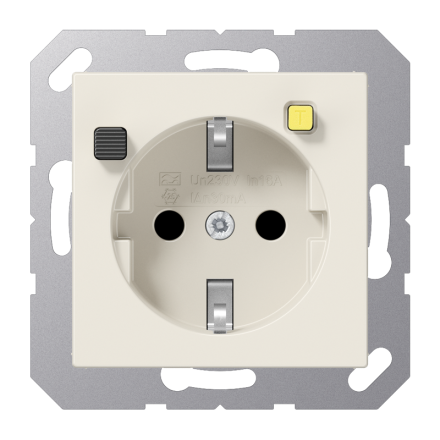

Jung A5520.30 FI Schuko socket

In stock

SKU: 915758

Price on request

€168.46

€0

Overview

according to DIN EN 61008-1 (VDE 0664-10) and DIN EN 61008-2-1 (VDE 0664-11), rated residual current: 30 mA, with integrated increased contact protection (Safety Plus), with spring terminals for rigid conductors up to 2.5 mm2, connecting terminals according to DIN VDE 0620, not suitable for mounting in surface-mounted caps, can be exchanged for existing sockets, can be connected to 2- or 3-core supply lines., Sockets connected to the FI-protected output terminals (LN) are also protected in accordance with DIN VDE 0100-410. However, the electrical installation up to the FI-SCHUKO® socket is not protected. With the built-in switch, the FI-SCHUKO® socket can also be switched on and off manually., Rated voltage: AC 230 V ~, 50/60 Hz, Rated current: 16 A, Rated residual current: 30 mA, Ambient temperature: 25 ... +40 °C

Property	Value
RAL number (similar):	1013
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	yes
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface finish:	glossy
Number of switchable sockets:	1
Device width:	55 mm
Device height:	55 mm
With loop-through function:	no
With on/off switch:	yes
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of Phases:	1
Antibacterial treatment:	no

Characteristics

HABA5520.30

Manufacturer

HANA5520.30

GTIN4011377148741

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionYes

Suitable for protection class (IP)IP20

Device width55 mm

Device height55 mm

Halogen freeYes

With loop-through functionNo

With on/off switchYes

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)1013

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
