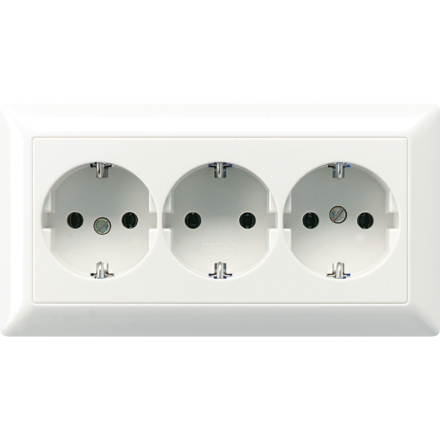

Jung AS523BFWW cable duct SCHUKO® socket, 3-way, 16 A 250 V ~, integrated increased contact protection, SAFETY+, thermoplastic, AS series, alpine white

Jung AS523BFWW cable duct SCHUKO® socket, 3-way, 16 A 250 V ~, integrated increased contact protection, SAFETY+, thermoplastic, AS series, alpine white

In stock

SKU: 428873

Price on request

€20.65

€0

Overview

Cable duct SCHUKO® socket, 3-way, 16 A 250 V ~, integrated increased contact protection, SAFETY+, thermoplastic, AS series, alpine white with spring terminals for rigid conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620
with integrated frame for use in commercially available duct boxes
Dimensions: 80.5 x 151.5 mm
3-way
Material: thermoplastic

Property	Value
RAL number (similar):	9016
Number of units:	3
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Thermoplastic
Surface finish:	glossy
Device width:	151.5 mm
Device height:	80.5 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HANAS523BFWW

GTIN4011377176324

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units3

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width151.5 mm

Device height80.5 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)9016

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
