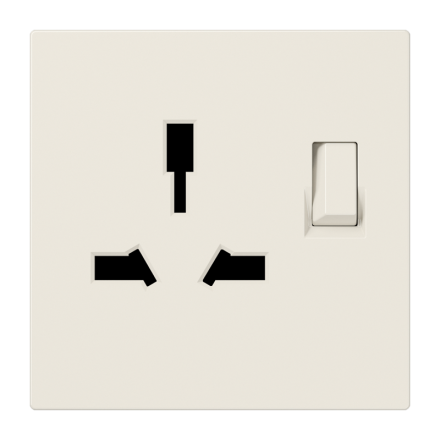

Jung LS4171GISW switchable socket, type G + I, 13 A 250 V ~, LS series, white

Jung LS4171GISW switchable socket, type G + I, 13 A 250 V ~, LS series, white

In stock

SKU: 428877

Price on request

€22.74

€0

Overview

Switchable socket, type G + I, 13 A 250 V ~, LS series, white 13 A 250 V ~
for plugs BS 1363 (type G) and GB 2099-1 (type I)
with integrated increased contact protection
with screw terminals for rigid and flexible conductors up to 4 mm2
Installation in device box with dimensions according to DIN 49073

Property	Value
Version:	other
RAL number (similar):	1013
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	13 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Screw terminal
With Fine-wire fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Duroplast
Surface finish:	glossy
Number of switchable sockets:	1
Device width:	70 mm
Device height:	70 mm
With Loop-through function:	no
With on/off switch:	yes
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Number of active contacts (round):	2
With Signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HANLS4171GISW

GTIN4011377176454

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

VersionOther

Surface finishGlittering

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width70 mm

Device height70 mm

Halogen freeYes

With loop-through functionNo

With on/off switchYes

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current13 A

RAL number (similar)1013

Protective contactYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo

Jung LS4171GISW switchable socket, type G + I, 13 A 250 V ~, LS series, white

Price on request

€22.74

€0
