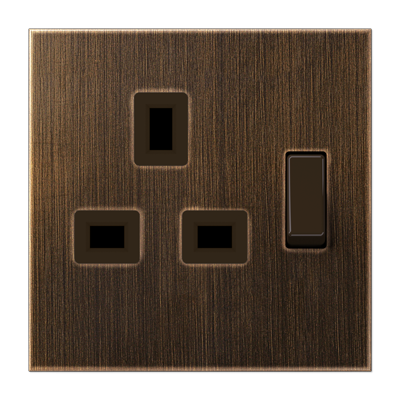

Jung ME3171AT switchable socket, British Standard, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, integrated increased contact protection, SAFETY+

Jung ME3171AT switchable socket, British Standard, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, integrated increased contact protection, SAFETY+

In stock

SKU: 763550

Price on request

€54.52

€0

Overview

Switchable socket, British Standard, 13 A 250 V ~, screw terminals BS 1363-1, 4 mm2, without claws, integrated increased contact protection, SAFETY+ 2-pin. + E, with switch without control light
with integrated increased contact protection
British Standard 1363:1995
with screw terminals for rigid and flexible conductors up to 4 mm2 according to BS 1363-1
Material: brass

Property	Value
Version:	British Standard
RAL number (similar):	8014
Number of units:	1
Color:	Brass
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	13 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Screw terminal
With fine fuse:	no
Mounting type:	Mounting with screw
Material:	metal
Material quality:	brass
Surface finish:	matt
Number of switchable sockets:	1
Device width:	70 mm
Device height:	70 mm
With loop-through function:	no
With on/off switch:	yes
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

HABME3171AT 13A 250V

Manufacturer

HANME3171AT

GTIN4011377171374

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

VersionBritish Standard

Surface finishFrosted

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width70 mm

Device height70 mm

Halogen freeYes

With loop-through functionNo

With on/off switchYes

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current13 A

RAL number (similar)8014

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialMetal

Material qualityBrass

Overvoltage protectionNo
