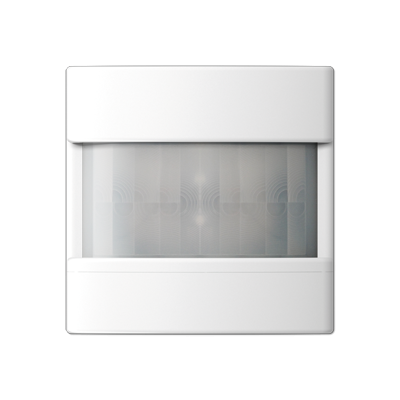

LB-Management motion detector standard 1.10 m, AS/A series, alpine white for 'light' inserts, item nos.: 1701 SE, 1701 PSE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE Intended use Automatic switching of lighting, depending on heat movement and ambient brightness Operation with system insert for switching or dimming or 3-wire extension Wall mounting on system insert Product features Extension of the detection area in combination with 3-wire extension Operation with 2- or 3-wire extension, rotary extension or button Adjustable brightness threshold Adjustable sensitivity Fixed Follow-on time Switch on with last brightness or fixed switch-on brightness, with dimmer insert Switch-on brightness can be permanently saved via extension, with dimmer insert Light can be dimmed via extension, with dimmer insert Cover for limiting the detection area Ambient temperature: 20 ... +45 °C Storage/transport temperature: 25 ... +70 °C Brightness setting: approx. 5 ... 1,000 lx (and daytime operation) Sensitivity: 25, 50, 75, 100 % Follow-on time: approx. 2 min Installation height: 1.10 m Detection angle: 180° Detection range Sensitivity 25 %: max. 8 m Sensitivity 50 %: max. 13 m Sensitivity 75 %: max. 26 m Sensitivity 100%: max. 32 m Dimensions (W x H): 55 x 55 mm
