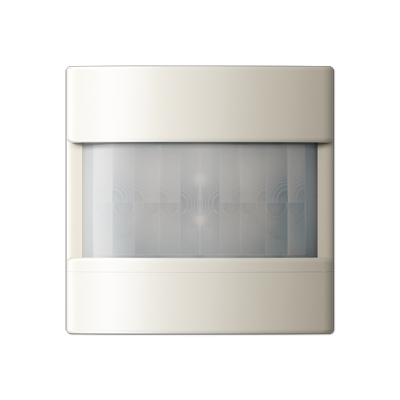

Universal automatic switch 1.10 m, AS series, white for inserts 'Light' Item no.: 1701 SE, 1701 PSE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE available until June 1st, 2023 Intended use Automatic switching of lighting, depending on heat movement and ambient brightness Operation with system insert for switching or dimming or 3-wire extension Wall mounting on system insert Product features Functions directly on the attachment Extension of the detection range in combination with 3-wire extension Permanently on, permanently off Operation with 2- or 3-wire, rotary extension or button Dimming insert can be dimmed via extension Reset to factory settings Cover to restrict the detection area Functions via Clever Config app Brightness threshold adjustable Setting the sensitivity of the PIR sensors Follow-up time adjustable On or off for 0.5 - 5 hours Switch-off warning Dynamic follow-up time Presence simulation Alarm function Time switch function Operating lock Reduced basic sensitivity Automatic summer/winter time changeover Test operation Programming of up to 16 individual switching times In combination with a switching insert Short-term operation In combination with a dimming insert Switch on with last set brightness or saved switch-on brightness Setting the minimum brightness Setting the maximum brightness Hotel function Night light function with time period for brightness reduction, with dimming insert Ambient temperature: 20 ... +45 °C Storage/transport temperature: 25 ... +70 °C Brightness setting: approx. 5 ... 500 lx (and daytime operation) Sensitivity: 0, 25, 50, 75, 100 % Follow-up time: approx. 10 s ... 60 min Installation height: 1.10 m Detection angle: 180° Detection range Sensitivity 25 %: max. 8 m Sensitivity 50 %: max. 13 m Sensitivity 75 %: max. 26 m Sensitivity 100 %: max. 32 m Radio frequency: 2.402 ... 2.480 GHz Transmission power: max. 2.5 mW (class 2) Transmission range: typically 10 m Dimensions (W x H): 55 x 55 mm
