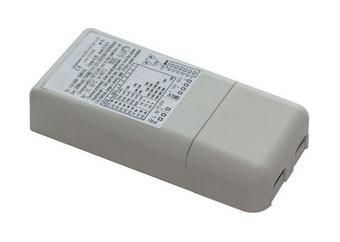

Barthelme 66004401 DALI 24V 350/500/700mA max. 20W dimmable LED control gear

In stock
SKU: 391346
€56.51
Into a basketIn the basketGo

Overview

Output (adjustable via dip switch) constant: 205mA/350mA/400mA/450mA/500mA/550mA/600mA/700mA/24V, dimming range 0-100%, memory function for scenes or light groups - recall of the stored functions, active power factor correction, analog input (NTC) for connecting a temperature sensor, current regulation +/- 5% including temperature fluctuations, screw terminals for cables 3-8mm, protection against overheating, overload, voltage peaks and short circuits, thermal protection = C.5.a.

PropertyValue
Output power:20 W
Protection class (IP):IP20
Output voltage:0 to 43 V
Output current:0 to 700 mA
Protection class:II
Length:108 mm
Width:52 mm
Height:22 mm
Design:dynamic
Housing:Plastic housing
Suitable for outdoor use:no
Suitable for constant voltage:yes
Suitable for constant current:yes
Suitable for direct voltage (primary side):yes
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DSI:no
Dimming DMX:no
Dimming potentiometer (integrated in device):no
Dimming GPRS:no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:yes

Characteristics

Suitable for constant currentYes
Suitable for constant voltageYes
Output power20 W
Suitable for direct voltage (primary side)Yes
Output current0 to 700 mA
HABDALI 24V 350/500/700mA max. 20W dimmable
ManufacturerBarthelme
HAN66004401
GTIN4021553069326
VersionDynamic
Output voltage0 to 43 V
Width52 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Suitable for outdoor useNo
HousingPlastic housing
Height22 mm
Length108 mm
Without dimming functionYes
IP protection)IP20
Protection classII
Barthelme 66004401 DALI 24V 350/500/700mA max. 20W dimmable LED control gear
