Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

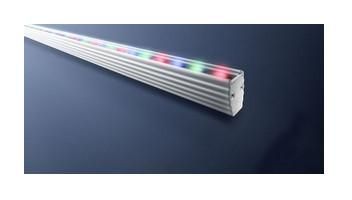

HABOut 501mm BS 1570lm 27W IP67 43x16° RGB
HAN63543155
GTIN4021553035963
Covering the luminaire with thermal insulation material possibleNo
Connection typeOther
Type of wiringDiploma
Beam angleWide beam 41-80°
Rated luminous flux according to IEC 62722-2-11570lm
Operating deviceLED control gear voltage controlled
Suitable for computer workstations according to EN 12464-1No
Width28 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM3
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingYes
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Suitable for wall mountingYes
Housing colorAluminum
Height/Depth54 mm
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light emissionDirect
Light colorRGB
Luminous flux1570lm
Light distributorFocus lens
Light distributionAsymmetrical
Length501 mm
Max. system performance27W
With operating deviceNo
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage24V
SurfaceOther
Brushed surfaceNo
Without dimming functionYes
Number of poles4
IP protection)IP68
Voltage typeDC
AdjustabilitySwiveling
Cover materialPlastic transparent
Housing materialAluminum
