Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

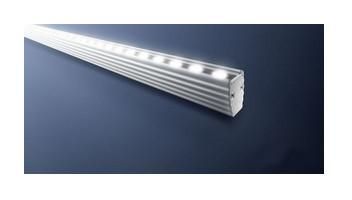

HABBERgamo HP Out BS 2700K 4140lm 26° 72W
HAN63992826
GTIN4021553048567
Covering the luminaire with thermal insulation material possibleNo
Connection typeOther
Type of wiringDiploma
Beam angleMedium beam 21-40°
Rated luminous flux according to IEC 62722-2-14140lm
Operating deviceLED control gear voltage controlled
Suitable for computer workstations according to EN 12464-1No
Width28 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM3
Color temperature2700K
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingYes
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Suitable for wall mountingYes
Housing colorAluminum
Height/Depth54 mm
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux4140lm
Light distributorFocus lens
Light distributionSymmetrical
Length996 mm
Max. system performance72W
With operating deviceNo
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage24V
SurfaceOther
Brushed surfaceNo
Without dimming functionYes
Number of poles2
IP protection)IP68
Voltage typeDC
AdjustabilitySwiveling
Cover materialPlastic transparent
Housing materialAluminum
