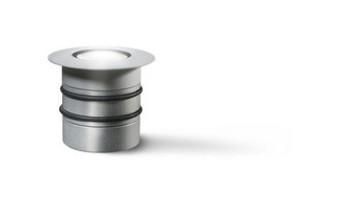

Barthelme 62743332 Pisa1.2 V4A geb 3000K 230lm 34° 2.6W LED recessed floor spotlight

Barthelme 62743332 Pisa1.2 V4A geb 3000K 230lm 34° 2.6W LED recessed floor spotlight

In stock

SKU: 391383

Price on request

€129.21

€0

Overview

Dimmable, high-quality LED recessed floor light for outdoor use, for light accentuation or as a position light, with integrated membrane to prevent condensation and contamination due to pressure equalization, including 5m connection cable with free wire ends, service life estimate L70 at Ta < 45°C: > 51,400h

Property	Value
Nominal voltage:	12 to 24 V
With light source:	yes
With control gear:	no
Installation diameter:	40 mm
Housing color:	Aluminum
Control gear:	LED control gear voltage controlled
Outer diameter:	54.5 mm
Light source:	LED not replaceable
Protection class (IP):	IP67
Protection class:	III
Electrical connection with plug-in system:	no
Cover material:	structured glass
Adjustable:	no
Light distribution:	symmetrical
Roll-over:	no
Rated luminous flux according to IEC 62722-2-1:	207 lm
Color temperature:	3000 K
Light color:	white
Voltage type:	DC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light distributor:	focus lens
Beam angle:	medium beam 21-40°
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Max. System power:	2.6 W
Height/depth:	66.5 mm
Installation height/depth:	64.5 mm
Wiring type:	Termination
Number of poles:	2
Connection type:	other

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

HABPisa1.2 V4A geb 3000K 230lm 34° 2,6W

Manufacturer

HAN62743332

GTIN4021553075587

Connection typeOther

Type of wiringDiploma

Beam angleMedium beam 21-40°

Outer diameter54.5 mm

Rated luminous flux according to IEC 62722-2-1207lm

Operating deviceLED control gear voltage controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter40 mm

Installation height/depth64.5 mm

Electrical connection with plug-in systemNo

Color temperature3000K

Housing colorAluminum

Height/Depth66.5 mm

AdjustableNo

LampsLED not replaceable

Light colorWhite

Light distributorFocus lens

Light distributionSymmetrical

Max. system performance2.6W

With operating deviceNo

With light sourceYes

Nominal voltage12 to 24 V

Without dimming functionYes

Number of poles2

IP protection)IP67

Protection classIII

Voltage typeDC

Cover materialGlass structured

RolloverNo
