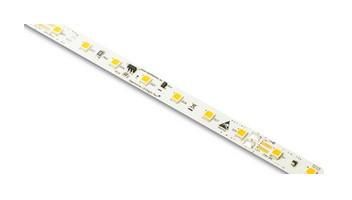

Barthelme 50007628 12 8p HE 24V 0.5W 2700K 668lm/m L: 9cm LED strip light

Barthelme 50007628 12 8p HE 24V 0.5W 2700K 668lm/m L: 9cm LED strip light

In stock

SKU: 391185

Price on request

€6.53

€0

Overview

Only one bin for worry-free handling when installing and reordering, only 8mm wide for combination with special connectors for tool-free connection of the LED strips without soldering including strain relief, large mid-power 3030 LED chip for optimal performance and heat dissipation, reverse polarity protection, long service life due to current constant with temperature control, high copper content in the FPC with heat-resistant 3M adhesive tape, service life estimate L70 at Tc<,80°C: >,60,300h

Property	Value
Lamp power per meter:	5.3 W
With connection set:	no
Number of lamps per meter:	78
Smallest bending radius:	30 mm
Width:	8 mm
Length:	90 mm
Beam angle:	120 °
Design:	Band
With end piece:	no
Color temperature:	2700 K
Light source:	LED not replaceable
Protection class (IP):	IP00
Self-adhesive:	yes
Voltage type:	DC
Mounting type:	Surface-mounted/built-in
Luminous flux per meter:	750 lm
Lamp voltage:	24 V
Operating device:	LED operating device voltage-controlled
Energy efficiency class of the permanently installed light source:	A++, A+, A (LED)
Rated service life L90/B10 at 25 °C:	60000 h
Protection class:	III
Max. system power:	0.5 W
Light color:	white
Color rendering index CRI:	80-89
Height/depth:	1.4 mm
With protective cover:	no
Type of wiring:	with through-wiring
Number of poles:	2
Connection type:	soldering

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

With end pieceNo

With connection setNo

Rated service life L90/B10 at 25 °C60000 h

HAB12 8p HE 24V 0,5W 2700K 668lm/m L: 9cm

Manufacturer

HAN50007628

GTIN4021553059303

Connection typeSoldering

Number of lamps per meter78

Type of wiringWith through wiring

VersionTape

Beam angle120°

Operating deviceLED control gear voltage controlled

Width8 mm

Color temperature2700K

Color rendering index CRI80-89

Height/Depth1.4 mm

Smallest bending radius30 mm

Lamp power per meter5.3W

Lamp voltage24V

LampsLED not replaceable

Light colorWhite

Luminous flux per meter750lm

Length90 mm

Max. system performance0.5W

With protective coverNo

Mounting typeConstruction/Installation

Number of poles2

IP protection)IP00

Protection classIII

Self-adhesiveYes

Voltage typeDC
