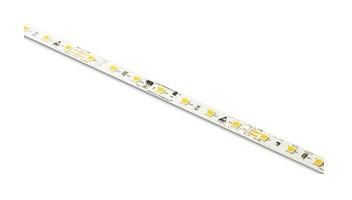

Barthelme 50007715 Plus 24V 17.6W/m 5700K 2450lm/m L: 9cm LED light strip

Barthelme 50007715 Plus 24V 17.6W/m 5700K 2450lm/m L: 9cm LED light strip

In stock

SKU: 391636

Price on request

€8

€0

Overview

Very high efficiency, only one bin according to 3-Step MacAdam, tool-free connection with connector possible, mid-power LED chips of the latest generation ensure optimal performance and heat dissipation, with reverse polarity protection diode, long service life due to current constant with temperature control, high copper content in the FPC and heat-conducting 3M double-sided adhesive tape, service life estimate L70 at Tc <, 80 °C: >, 60,300h

Property	Value
Lamp power per meter:	17.3 W
With connection set:	no
Number of lamps per meter:	78
Smallest bending radius:	30 mm
Width:	8 mm
Length:	90 mm
Beam angle:	120 °
Design:	Band
With end piece:	no
Color temperature:	5700 K
Light source:	LED not replaceable
Protection class (IP):	IP00
Self-adhesive:	yes
Voltage type:	DC
Mounting type:	Surface-mounted/built-in
Luminous flux per meter:	2450 lm
Lamp voltage:	24 V
Operating device:	LED operating device voltage-controlled
Energy efficiency class of the permanently installed light source:	A++, A+, A (LED)
Rated service life L90/B10 at 25 °C:	60000 h
Protection class:	III
Max. system power:	1.6 W
Light color:	white
Color rendering index CRI:	80-89
Height/depth:	1.4 mm
With protective cover:	no
Type of wiring:	with through-wiring
Number of poles:	2
Connection type:	soldering

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

With end pieceNo

With connection setNo

Rated service life L90/B10 at 25 °C60000 h

HABPlus 24V 17,6W/m 5700K 2450lm/m L: 9cm

Manufacturer

HAN50007715

GTIN4021553073170

Connection typeSoldering

Number of lamps per meter78

Type of wiringWith through wiring

VersionTape

Beam angle120°

Operating deviceLED control gear voltage controlled

Width8 mm

Color temperature5700K

Color rendering index CRI80-89

Height/Depth1.4 mm

Smallest bending radius30 mm

Lamp power per meter17.3W

Lamp voltage24V

LampsLED not replaceable

Light colorWhite

Luminous flux per meter2450lm

Length90 mm

Max. system performance1.6W

With protective coverNo

Mounting typeConstruction/Installation

Number of poles2

IP protection)IP00

Protection classIII

Self-adhesiveYes

Voltage typeDC
