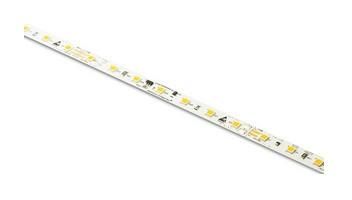

Barthelme 50007728 Plus 24V 17.6W/m 2700K 2263lm/m L: 9cm LED light strip

Barthelme 50007728 Plus 24V 17.6W/m 2700K 2263lm/m L: 9cm LED light strip

In stock

SKU: 391632

Price on request

€1.59

€0

Overview

Very high efficiency, only one bin according to 3-Step MacAdam, tool-free connection with connector possible, mid-power LED chips of the latest generation ensure optimal performance and heat dissipation, with reverse polarity protection diode, long service life due to current constant with temperature control, high copper content in the FPC and heat-conducting 3M double-sided adhesive tape, service life estimate L70 at Tc <, 80 °C: >, 60,300h

Property	Value
Lamp power per meter:	17.3 W
With connection set:	no
Number of lamps per meter:	78
Smallest bending radius:	30 mm
Width:	8 mm
Length:	90 mm
Beam angle:	120 °
Design:	Band
With end piece:	no
Color temperature:	2700 K
Light source:	LED not replaceable
Protection class (IP):	IP00
Self-adhesive:	yes
Voltage type:	DC
Mounting type:	Surface-mounted/built-in
Luminous flux per meter:	2260 lm
Lamp voltage:	24 V
Operating device:	LED operating device voltage-controlled
Energy efficiency class of the permanently installed light source:	A++, A+, A (LED)
Rated service life L90/B10 at 25 °C:	60000 h
Protection class:	III
Max. system power:	1.6 W
Light color:	white
Color rendering index CRI:	80-89
Height/depth:	1.4 mm
With protective cover:	no
Type of wiring:	with through-wiring
Number of poles:	2
Connection type:	soldering
