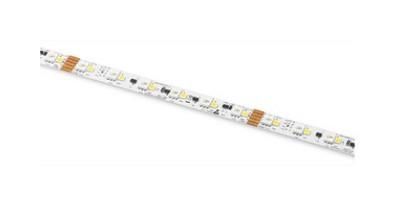

Barthelme 50009128 flex 16 RGBW 24V 19W/m 1122lm/m L: 10cm LED light strip

Barthelme 50009128 flex 16 RGBW 24V 19W/m 1122lm/m L: 10cm LED light strip

In stock

SKU: 391687

Price on request

€17.71

€0

Overview

Combination of RGB LED and single LED ensures homogeneous color mixing, RGBW produces pastel tones, pure white as well as warmer or cooler white tones, easy control via com+, long service life due to current constant with temperature control, high copper content in the FPC and heat-conducting 3-double adhesive tape, service life estimate L70 at Tc <, 45 °C: >, 30,000h

Property	Value
Lamp power per meter:	19.2 W
With connection set:	no
Number of lamps per meter:	120
Smallest bending radius:	20 mm
Width:	10 mm
Length:	100 mm
Beam angle:	120 °
Design:	Band
With end piece:	no
Light source:	LED not replaceable
Protection class (IP):	IP00
Self-adhesive:	yes
Voltage type:	DC
Mounting type:	Surface-mounted/built-in
Luminous flux per meter:	1250 lm
Lamp voltage:	24 V
Operating device:	LED operating device, voltage-controlled
Energy efficiency class of the permanently installed light source:	A++, A+, A (LED)
Protection class:	III
Max. System power:	1.9 W
Light color:	RGBW
Color rendering index CRI:	80-89
Height/depth:	2.5 mm
With protective cover:	no
Type of wiring:	with through-wiring
Number of poles:	4
Connection type:	soldering

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

With end pieceNo

With connection setNo

HABFlex 16 RGBW 24V 19W/m 1122lm/m L: 10cm

Manufacturer

HAN50009128

GTIN4021553075839

Connection typeSoldering

Number of lamps per meter120

Type of wiringWith through wiring

VersionTape

Beam angle120°

Operating deviceLED control gear voltage controlled

Width10 mm

Color rendering index CRI80-89

Height/Depth2.5 mm

Smallest bending radius20 mm

Lamp power per meter19.2W

Lamp voltage24V

LampsLED not replaceable

Light colorRGBW

Luminous flux per meter1250lm

Length100 mm

Max. system performance1.9W

With protective coverNo

Mounting typeConstruction/Installation

Number of poles4

IP protection)IP00

Protection classIII

Self-adhesiveYes

Voltage typeDC
