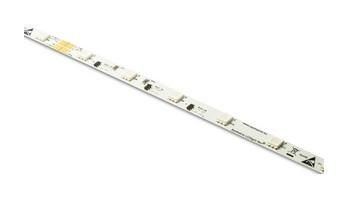

Barthelme 50015531 25 8p RGB 24V 1,5W 360lm/m L: 15cm LED strip light

Barthelme 50015531 25 8p RGB 24V 1,5W 360lm/m L: 15cm LED strip light

In stock

SKU: 391198

Price on request

€15.27

€0

Overview

Only 8mm wide for combination with the special connectors for tool-free connection of the LED strips without soldering including strain relief, easy control via com+, long service life due to current constant with temperature control, high copper content in the FPC and heat-conducting 3M double-sided adhesive tape, service life estimated L70 at Tc<,45°C: >,30,000h

Property	Value
Lamp power per meter:	9.6 W
With connection set:	no
Number of lamps per meter:	40
Smallest bending radius:	30 mm
Width:	8 mm
Length:	150 mm
Beam angle:	120 °
Design:	Band
With end piece:	no
Lamp:	LED not replaceable
Protection class (IP):	IP00
Self-adhesive:	yes
Voltage type:	DC
Mounting type:	Surface-mounted/built-in
Luminous flux per meter:	440 lm
Lamp voltage:	24 V
Operating device:	LED operating device, voltage-controlled
Energy efficiency class of the permanently installed light source:	A++, A+, A (LED)
Protection class:	III
Max. System power:	1.5 W
Light color:	RGB
Height/depth:	2.5 mm
With protective cover:	no
Type of wiring:	with through wiring
Number of poles:	4
Connection type:	soldering

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

With end pieceNo

With connection setNo

HAB25 8p RGB 24V 1,5W 360lm/m L: 15cm

Manufacturer

HAN50015531

GTIN4021553058641

Connection typeSoldering

Number of lamps per meter40

Type of wiringWith through wiring

VersionTape

Beam angle120°

Operating deviceLED control gear voltage controlled

Width8 mm

Height/Depth2.5 mm

Smallest bending radius30 mm

Lamp power per meter9.6W

Lamp voltage24V

LampsLED not replaceable

Light colorRGB

Luminous flux per meter440lm

Length150 mm

Max. system performance1.5W

With protective coverNo

Mounting typeConstruction/Installation

Number of poles4

IP protection)IP00

Protection classIII

Self-adhesiveYes

Voltage typeDC
